Fire Alarm
System

Modern system for fire alarm and detection based on linear optical sensor cable and addressable point detectors makes the tunnel exceptionally safe for all passengers.
In case of incident situation, there are four ways of activating the system:

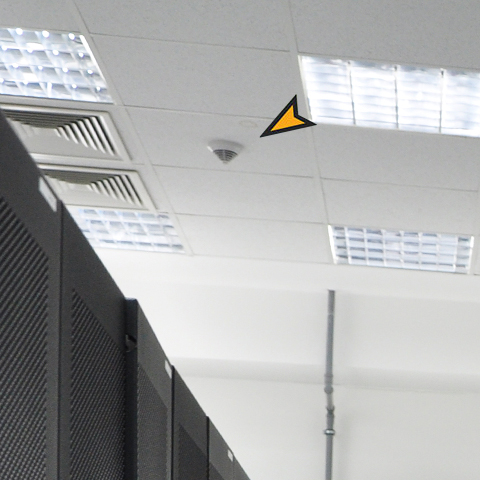

Optical-thermal sensors

Detection of smoke and increased temperature

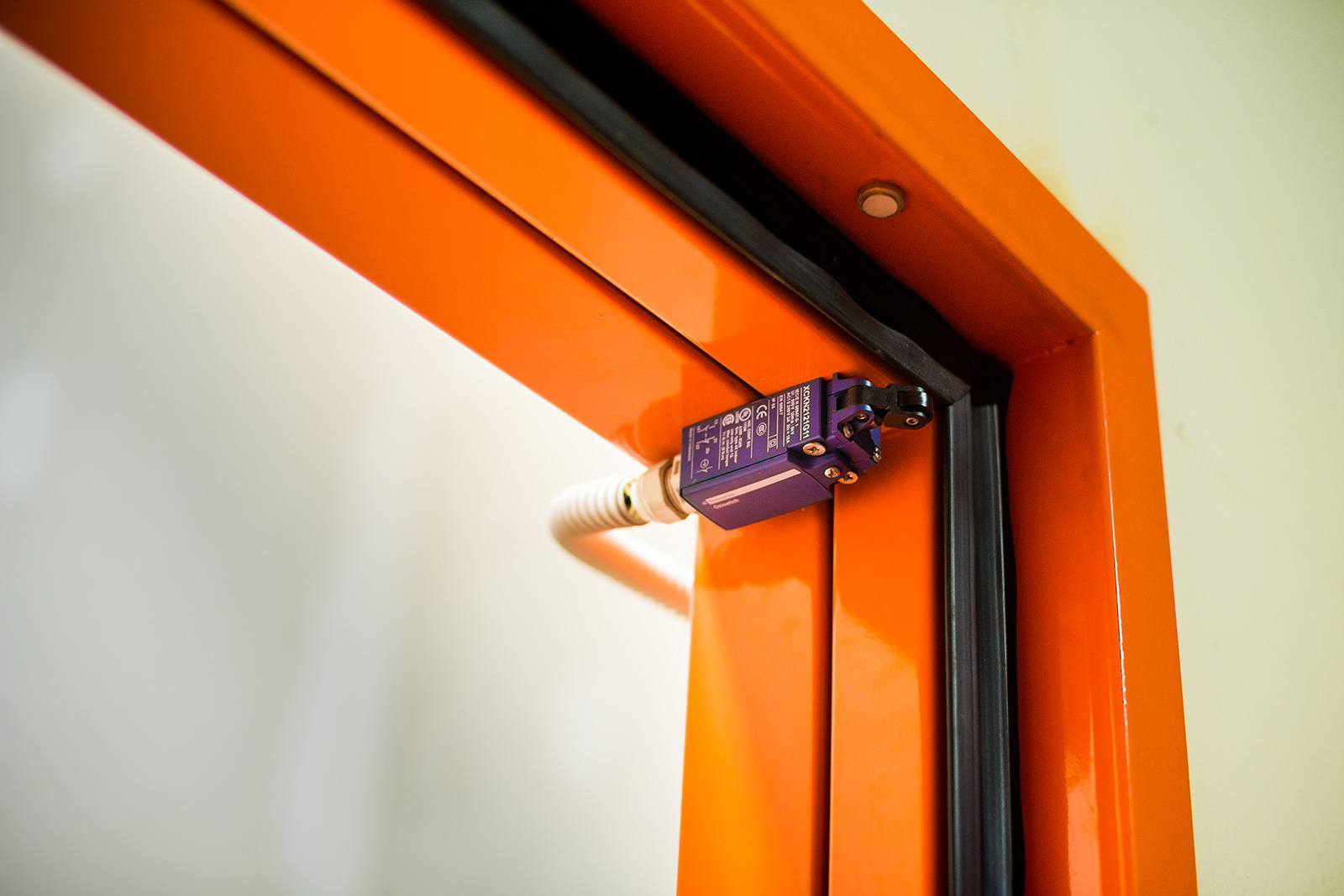

Input/output modules

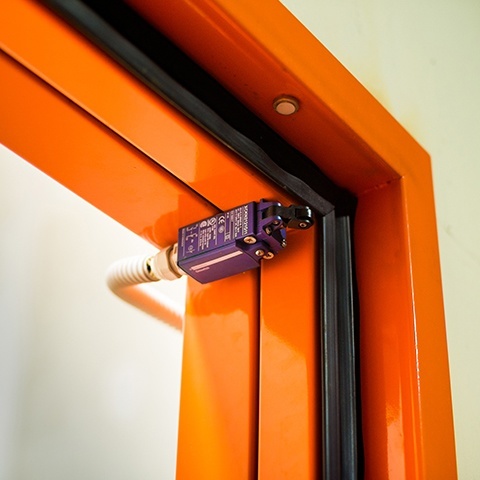

Detection of each manual movement of fire extinguisher from its housing as well as opening of entrance door in a SOS niche an opening of the door between the two tunnel tubes

Linear fire detector

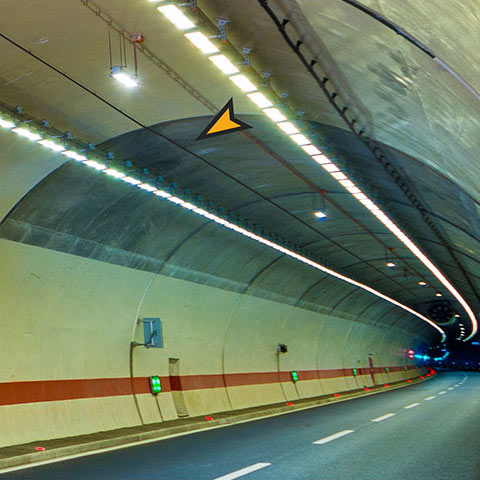

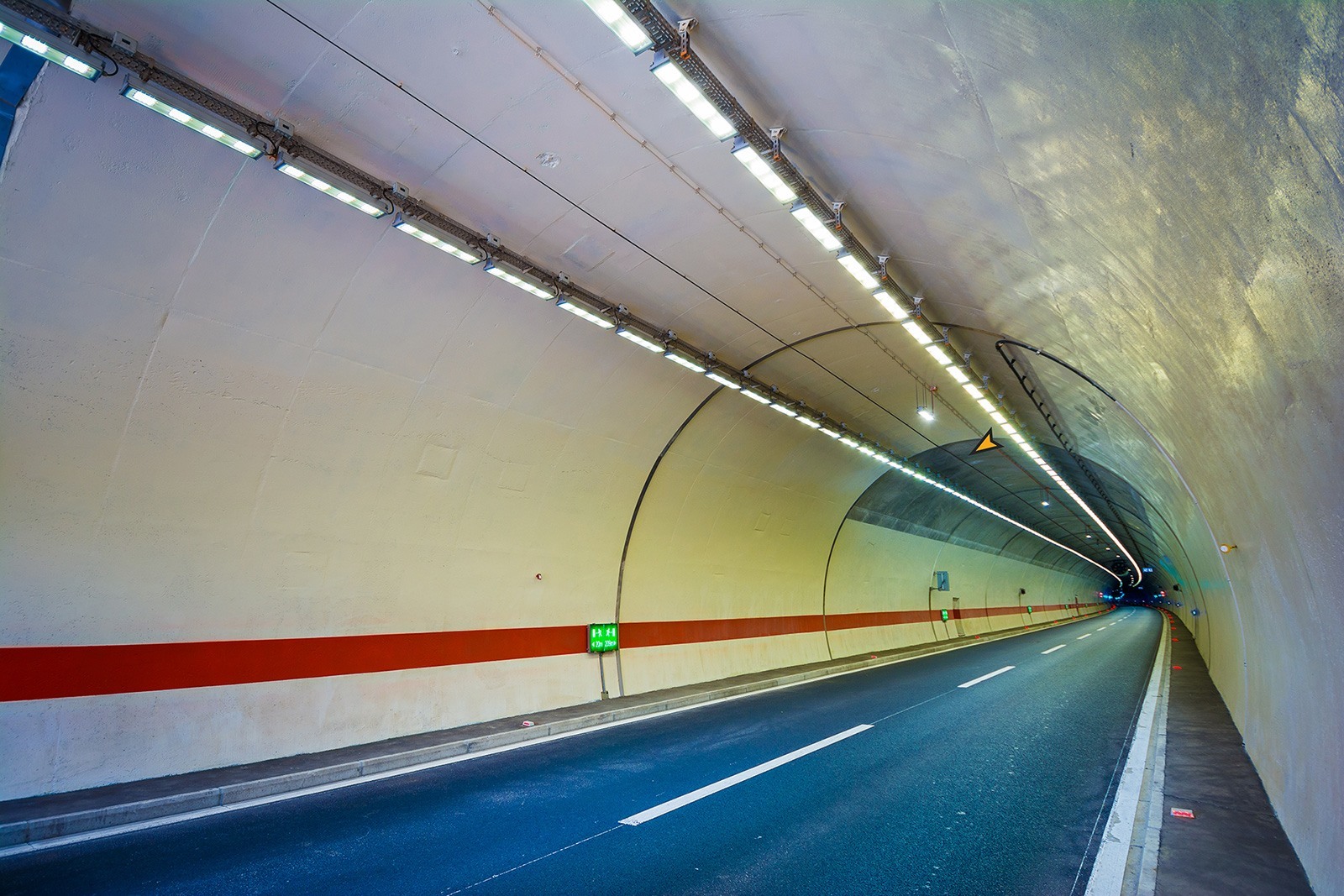

Optical sensor cable – it is lined along the entire tunnel ceiling and it detects increased temperature on each meter

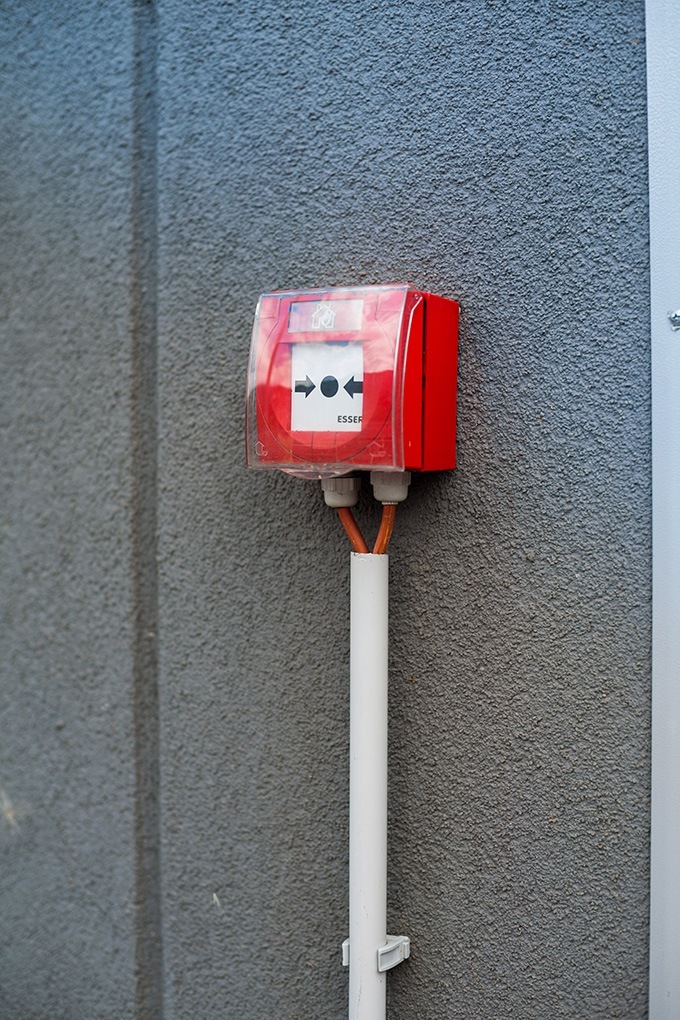

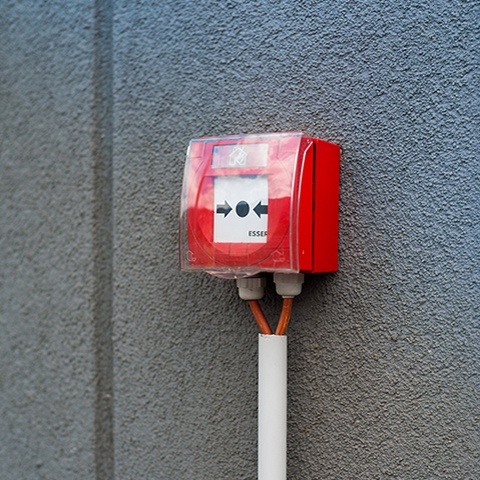

Manual fire detectors

Installed alongside the tunnel and can be manual activated by pedestrians

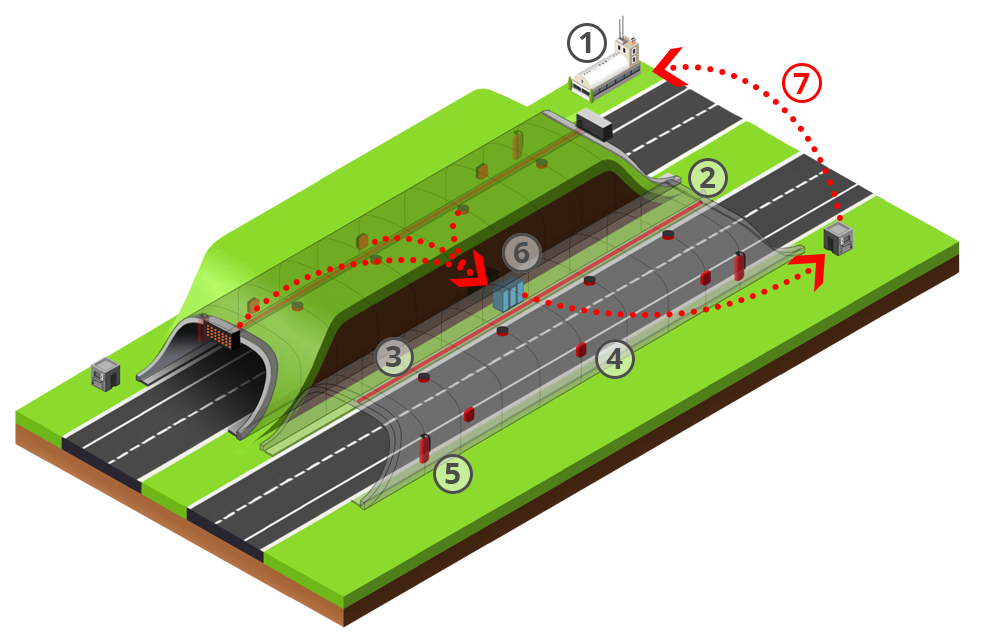

ELEMENT SCHEME

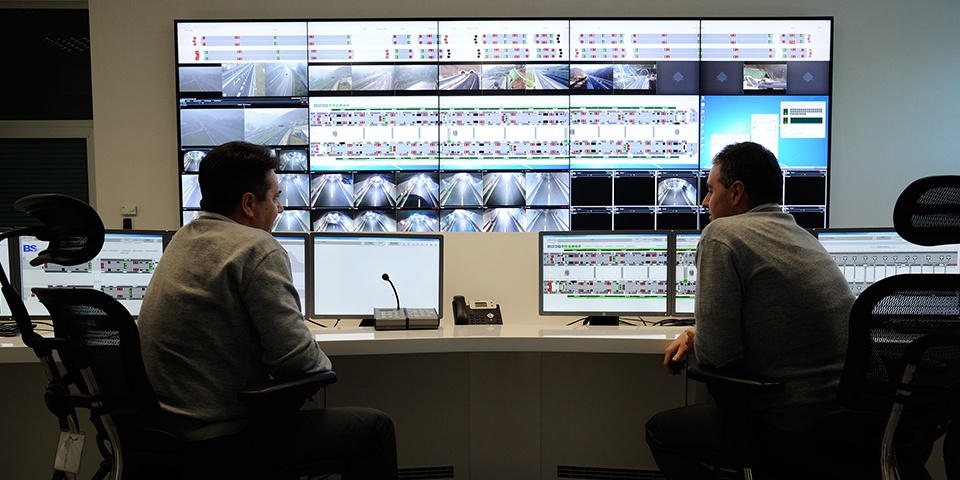

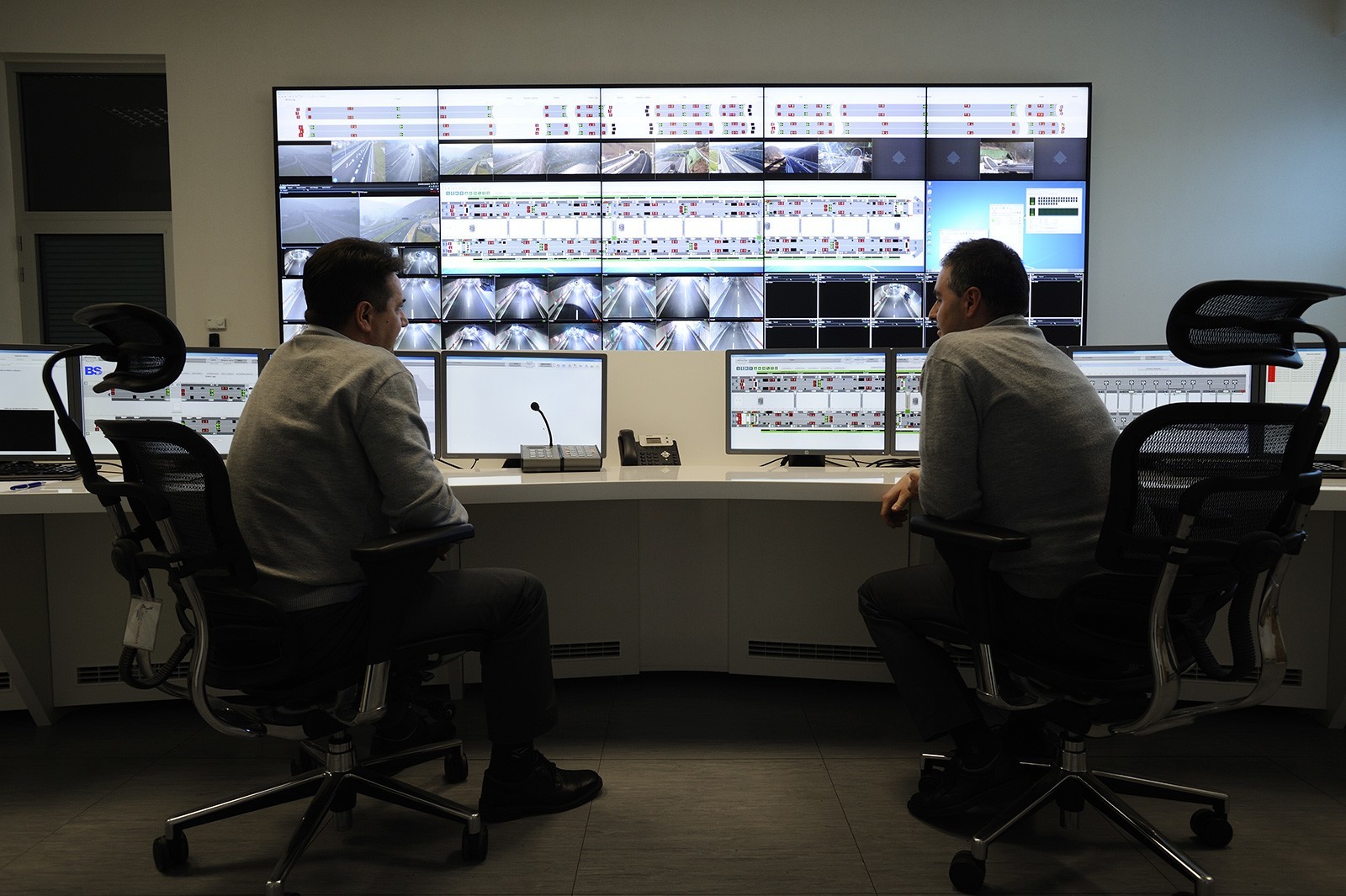

  • 1. TMCC
  • 2. Optical sensor cable
  • 3. Optical thermal sensor
  • 4. Manual fire detector
  • 5. Input/output Module (Fire extinguisher)
  • 6. Fire alarm station in SOS niche
  • 7. One-way communication

The entire tunnel is divided into fire alarm zones and in case of the incident situation, TMCC will identify the zone and activate zone-appropriate scenario.
